Description

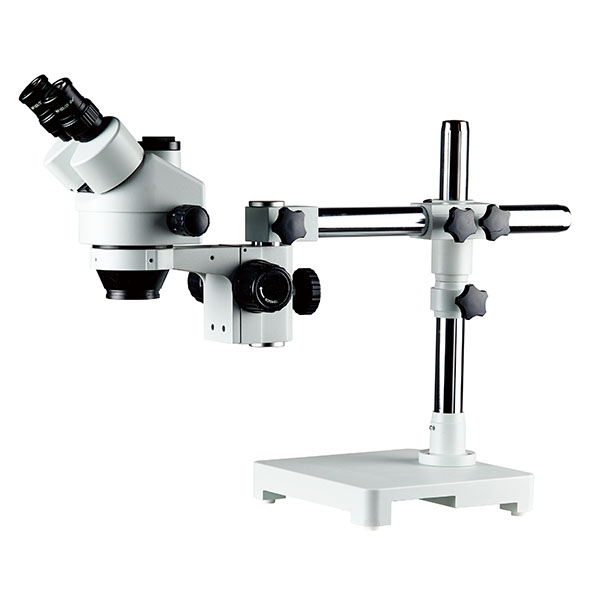

trinocular microscope zoom magnification trinocular single arm boom stand.
stereo zoom microscope the zoom-stereo microscope optical structure of common primary objective lens. The two beams after imaging the object are separated by two sets of intermediate objective lenses-the zoom lens, and they form an integrated viewing angle and pass through their respective eyepieces For imaging, microscope magnification change is obtained by changing the distance between the intermediate lens groups.
trinocular microscope specificaton
Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body:
Trinocular microscope head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Boom Stand;
Expand the scope of operation and observe the object in any direction
Vertical Post：380mm
Diameter：φ32mm
Horizontal moving：235mm
Base Size：230x230x40mm
With 76mm32mm Focusing Mount focus rack
